Laundry Carrier

Laundry Carrier

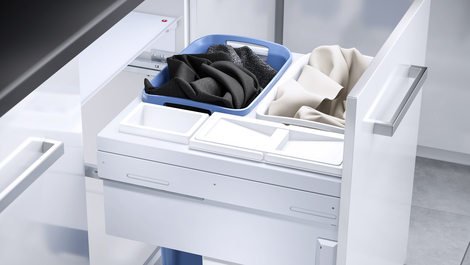

Hailo Laundry Carrier 600

3270611
GTIN: 4007126368430

For 60 cm wide base-cabinets

slide
slide
4 Bin
4 Bins
80 l
Total

SUITABLE FOR CABINETS

60 cm


  • Specifications

    Type of installation Slide
    Cabinet-width min. (cm) 60
    Cabinet-width max. (cm) 60
    Suitable for cabinet width (cm) 60
    Sidewall mounted
    Slides covered, dampened slides with self-closing device with fully synchronized over-travel
    Side-wall thickness (mm) 16 - 19 mm (self-adjusting)
    Product dimensions (WxDxH) (mm) 562-568 x 528 x 545
    Packing dimensions (WxDxH) (mm) 590 x 325 x 620
    System-depth (mm) 528
    Number of bins 4
    Lid 1 x Lid 12 l
    Capacity (l) 2 x 33 + 1 x 12 + 1 x 2,5
    Total volume (l) 80
    Color metal parts white
    Color plastic parts white / blue
    Weight incl. packing (kg) 15,5

    Specifications

    Type of installation Slide
    Cabinet-width min. (cm)
    60
    Cabinet-width max. (cm)
    60
    Suitable for cabinet width (cm)
    60
    Sidewall mounted
    Slides
    covered, dampened slides with self-closing device with fully synchronized over-travel
    Side-wall thickness (mm)
    16 - 19 mm (self-adjusting)
    Product dimensions (WxDxH) (mm)
    562-568 x 528 x 545
    Packing dimensions (WxDxH) (mm)
    590 x 325 x 620
    System-depth (mm)
    528
    Number of bins
    4
    Lid
    1 x Lid 12 l
    Capacity (l)
    2 x 33 + 1 x 12 + 1 x 2,5
    Total volume (l)
    80
    Color metal parts
    white
    Color plastic parts
    white / blue
    Weight incl. packing (kg)
    15,5

    Sketches

    Skizze

    Skizze

  • Downloads

    Installation instruction (Template not to scale!) MA_3270461_3270611.pdf Download
    Ausbau Wiedereinbau / Removal Reassembly Ausbau_Wiedereinbau_Removal_Reassembly.pdf Download
    Product Sheet Laundry Carrier_3270611.pdf Download

    Downloads

    Installation instruction (Template not to scale!)
    MA_3270461_3270611.pdf
    Ausbau Wiedereinbau / Removal Reassembly
    Ausbau_Wiedereinbau_Removal_Reassembly.pdf
    Product Sheet
    Laundry Carrier_3270611.pdf
